Hi Guys
Still asking for help with this one
I have a steering wheel and column out of wrecked PR91 GT.

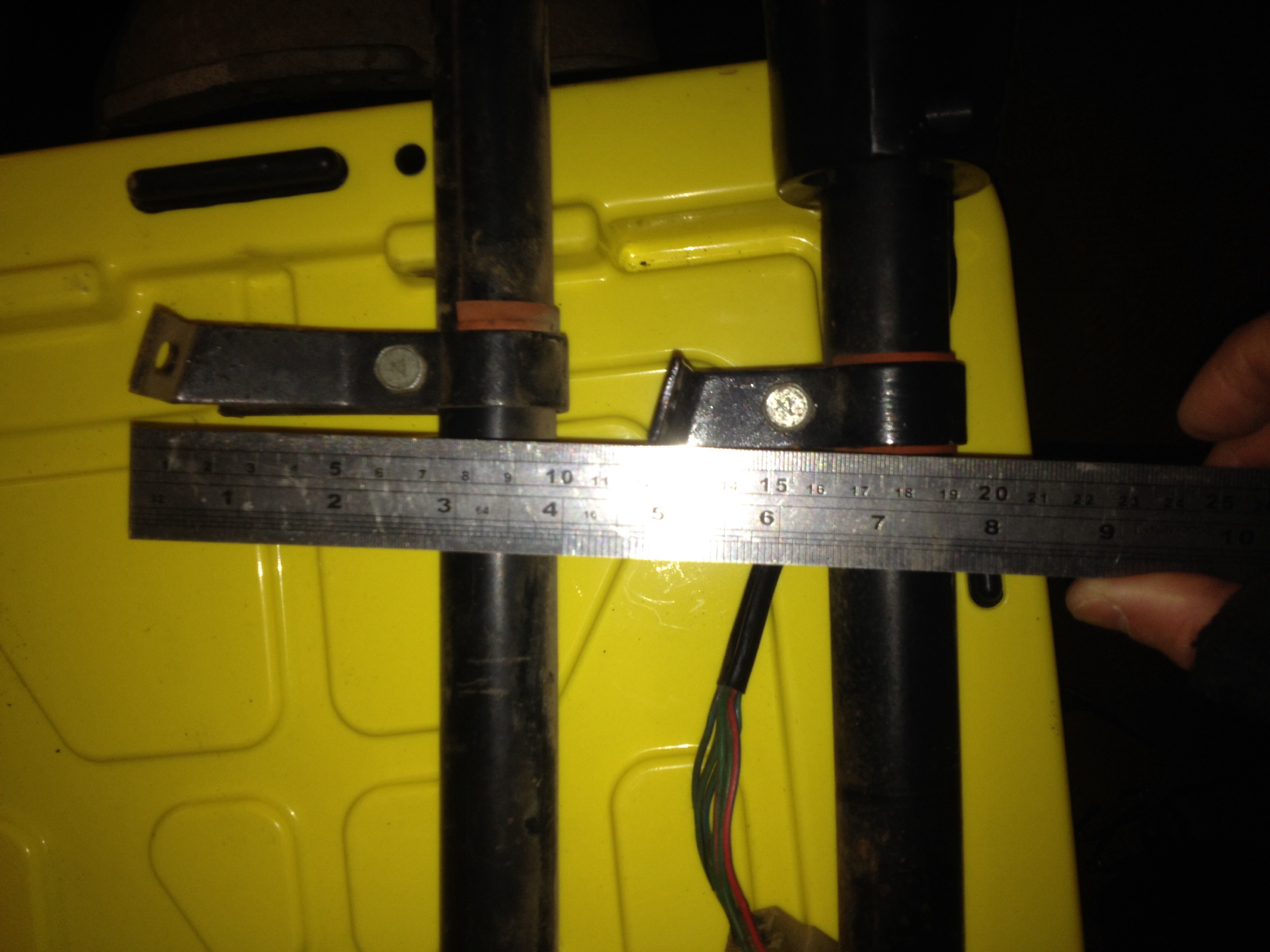

It appears to have the same inner shaft length but different outer column as per photo
The longer outer column below the mounting flange is the GT, the shorter one is out of a '68 PR20 ( from St Marys that GT Orphanage found)
When I tried to fit the GT to my 66 1/2 PR20 it wouldn't fit unless I lowered the indicator assemble but no way would the shroud fit below the wheel.
If u actually look at the GT wheel it is thicker below the actual spokes of the wheel than the standard wheel.
Can anyone please she's some light on this for me
Thanks
J
Attachments:
image.jpg [ 1.08 MiB | Viewed 19089 times ]
_________________
To increase the fun, add a hair dryer
|
| Fri Jun 19, 2015 7:46 am |
|
|
|
gt orphanage
Joined: Fri Mar 20, 2009 8:23 am
Posts: 1816
|
It will depend on the mix n match the 68 shaft will most likely have Gemini spline so will a strip tail gt if the horn button is red on the gt steering wheel the spline should fit to the earlier shafts if it has a soft black centre it will fit the 68.
|
| Fri Jun 19, 2015 8:00 am |
|
|
|
Asroc66
Joined: Tue Jun 18, 2013 5:09 am
Posts: 428
Location: Sydney NSW
Car(s): PR91 1967 GT, PR20 1966 1/2 with GT Goodies
|
Hi
The wheel has a red centre and is off a square tail light GT
It fits my white 66 1/2 PR20 but I can't seem to find a shroud that fits either GT or 4 door
Scratching my head
J
_________________
To increase the fun, add a hair dryer
|
| Fri Jun 19, 2015 8:08 am |
|
|
|
gt orphanage
Joined: Fri Mar 20, 2009 8:23 am
Posts: 1816
|
can you slide it further down the shaft  as the stalk and shroud are only clamped. there is a dimple for the stalk from memory but it should work.
|
| Fri Jun 19, 2015 8:11 am |
|
|
|
Asroc66
Joined: Tue Jun 18, 2013 5:09 am
Posts: 428
Location: Sydney NSW
Car(s): PR91 1967 GT, PR20 1966 1/2 with GT Goodies
|
Hi G
I slide the indicator assembly down so no problem there
It's the damn shroud
Unless I am having a 'Matt Damon' moment there isn't a way to fit either the GT or 4 Door a
Shrouds over the moved indicator assembly as the column bolts up under the dash
I must be missing something so simple but I can't see why????
J
_________________
To increase the fun, add a hair dryer
|
| Fri Jun 19, 2015 8:18 am |
|
|
|
gt orphanage
Joined: Fri Mar 20, 2009 8:23 am
Posts: 1816
|
some have a flat edge at the back that goes between the outer tube and the crash pad tapered at the back on the top half.
|
| Fri Jun 19, 2015 8:22 am |
|
|
|
Asroc66
Joined: Tue Jun 18, 2013 5:09 am
Posts: 428
Location: Sydney NSW
Car(s): PR91 1967 GT, PR20 1966 1/2 with GT Goodies
|
On closer inspection
I think it because the GT column mount is further down the shaft than the PR20
Bugga
J
_________________
To increase the fun, add a hair dryer
|
| Fri Jun 19, 2015 8:39 am |
|
|
|
Retroasted
Joined: Tue Aug 14, 2012 10:55 am
Posts: 230
Car(s): Isuzu Bellett, Morris Minor 1000
|
Possibly a really stupid question as I have absolutely no idea. But would it be possible to fit the whole GT column and shaft and then the wheel? Or are the mounts to dash? Etc in totally wrong places? I guess you would have already tried the options?
|
| Fri Jun 19, 2015 9:05 am |
|
|
|
Asroc66
Joined: Tue Jun 18, 2013 5:09 am
Posts: 428
Location: Sydney NSW
Car(s): PR91 1967 GT, PR20 1966 1/2 with GT Goodies
|
Good question
This is why I put one next to the other
It appears the columns do indeed mount at different points under the dash so
'Computer says noooooo'
I tried after I saw Bullitt's PR20
Must of had some voodoo magic way
Attachments:
image.jpg [ 94.31 KiB | Viewed 19063 times ]
_________________
To increase the fun, add a hair dryer
|
| Fri Jun 19, 2015 9:40 am |
|
|
|
gt orphanage
Joined: Fri Mar 20, 2009 8:23 am
Posts: 1816
|
I have never came across sedan and gt difference in the past.
|
| Fri Jun 19, 2015 11:49 am |
|
|
|
BULLITT
Joined: Mon Jan 10, 2011 1:03 pm
Posts: 2419
Car(s): 1966 TEARDROP ...MANUAL ...
|

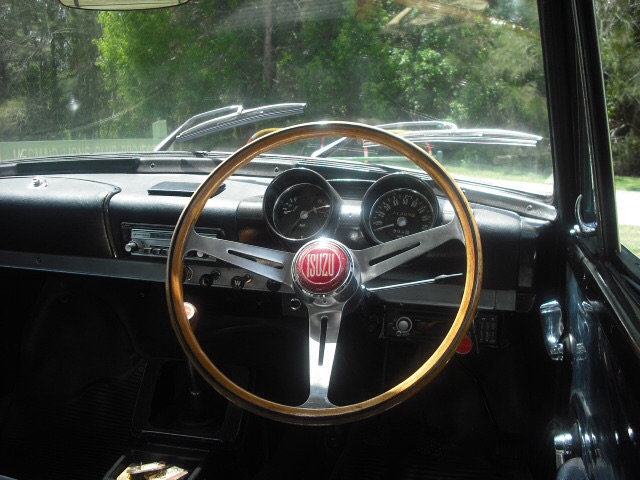

thanks for the picture ....of my old teardrop .....here I go again ....I think this will be my last car ...davo
|
| Fri Jun 19, 2015 9:50 pm |
|
|
|
Asroc66
Joined: Tue Jun 18, 2013 5:09 am
Posts: 428
Location: Sydney NSW
Car(s): PR91 1967 GT, PR20 1966 1/2 with GT Goodies
|

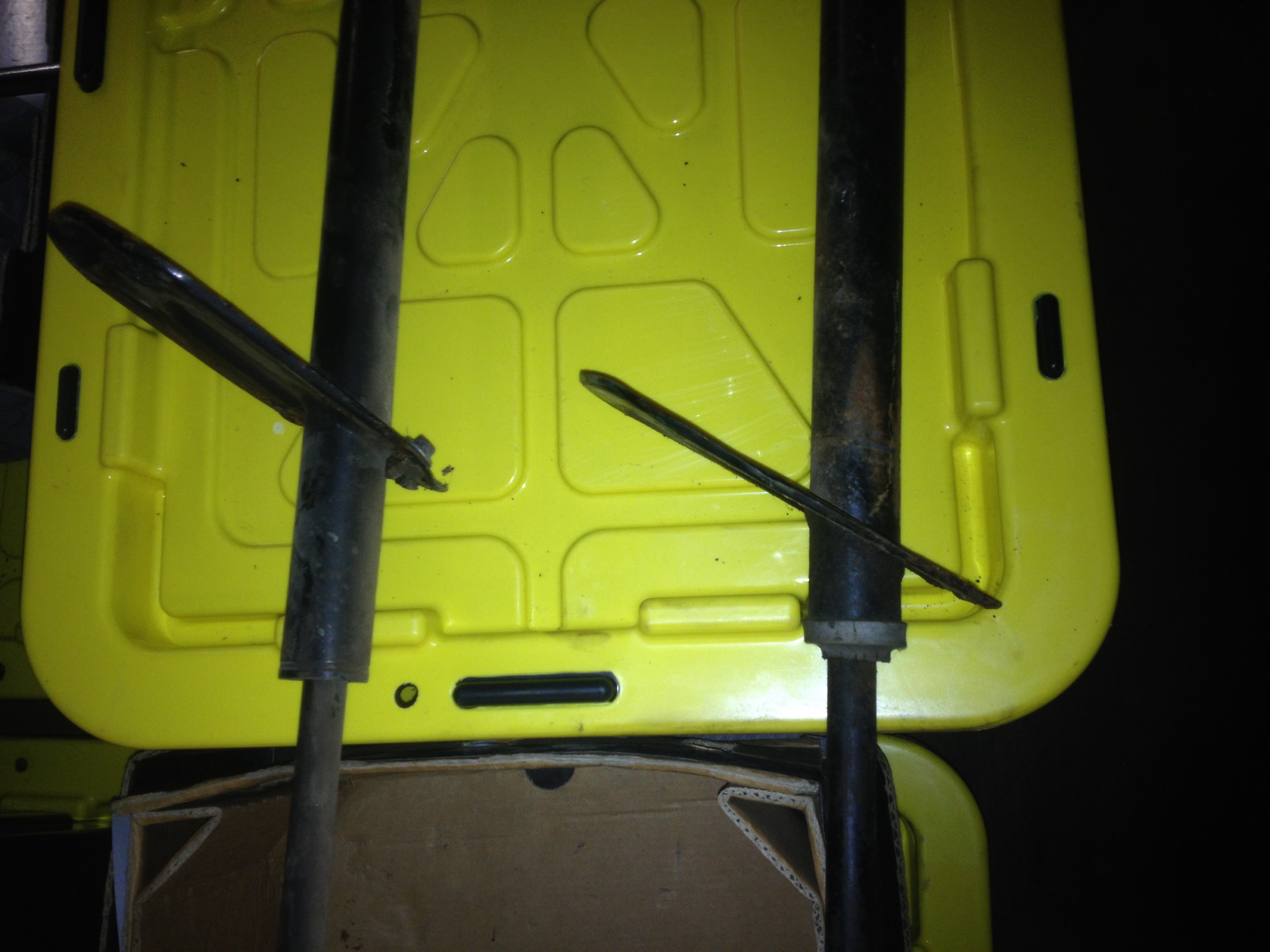

A picture tells a 1000 words
Cheers
J
Attachments:
image.jpg [ 1.02 MiB | Viewed 19036 times ]
_________________
To increase the fun, add a hair dryer
|
| Fri Jun 19, 2015 11:37 pm |
|
|
|
PR91
Joined: Tue Sep 16, 2008 11:54 am
Posts: 2544
|
The GT mount is longer to set the wheel lower. This is coz the seats are lower in a GT coz the roof is lower.
The plate that mounts to the firewall is also at a different angle as well.
|
