G180W wiring diagram in English with photos
| Author |
Message |
|
Gigantor928
Joined: Mon Apr 12, 2010 10:17 am
Posts: 15
Car(s): 77 TC Gemini Sedan, 06 Mazda MX-5
|
I have created an english version of the japanese wiring diagram for the G180W ECGI engine. It's based on compiled translations and many hours of working things out with the loom in front of me. It includes the wiring diagram with translations and a series of photos of a standard ZZ/R loom from ECU to all the individual plugs with labels. I tried to login to the isuzu twin cam forum to put it there, but it wouldn't let me for some reason...
It's a pdf file. I don't have any file hosting capabilities at the moment. If anyone wants the file, let me know. Perhaps someone can post it to here so it's available. Hopefully it will help a few trying to sort out the wiring associated with this engine.
Jason
|
| Sat May 22, 2010 8:27 am |
|
|
|
gt orphanage
Joined: Fri Mar 20, 2009 8:23 am
Posts: 1816
|
do you know where i can get a inlet manifold for one?
|
| Sat May 22, 2010 9:15 am |
|
|
|
Gigantor928
Joined: Mon Apr 12, 2010 10:17 am
Posts: 15
Car(s): 77 TC Gemini Sedan, 06 Mazda MX-5
|
If you contact Elky through the Ozgemini forum (you can do a member search there), he has plenty of parts for these engines. He's on the Sunshine Coast or Nth Brissy... that would be your best bet, or you can browse ebay, they pop up there from time to time...
|
| Sat May 22, 2010 10:03 am |
|
|
|
Farmer
Joined: Tue Oct 28, 2008 12:17 pm
Posts: 2612
Location: Rye Park, N.S.W.
Car(s): Doris, AuntyMary, Shrek, Jimmy; GT, Wasp, Flo & Sed unrestos; 65 Elf; 82 Rodeo, 60 TX550, 72 Sport, & a Sigma.
|
Thanks for all the work & the offer Jason. If you can email it to me I might be able to convert the file, I'm a toddler with 'puters but I think this does it. The diagram could be very useful to me too. Thanks
Matt.
_________________
Life is far too short not to fill it with what you love. - Jackie French.[/size]
|
| Sat May 22, 2010 12:25 pm |
|
|
|
Farmer
Joined: Tue Oct 28, 2008 12:17 pm
Posts: 2612
Location: Rye Park, N.S.W.
Car(s): Doris, AuntyMary, Shrek, Jimmy; GT, Wasp, Flo & Sed unrestos; 65 Elf; 82 Rodeo, 60 TX550, 72 Sport, & a Sigma.
|

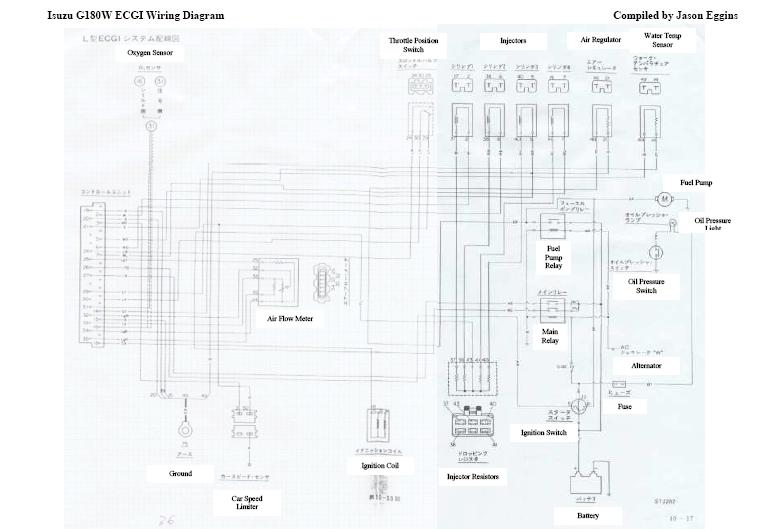

O.K.,here we go. Jpg converted, hopefully the right size. Thanks Jason for all the work, and for shareing. Attachment:
G180 wiring diagram.JPG [ 42.83 KiB | Viewed 10147 times ]

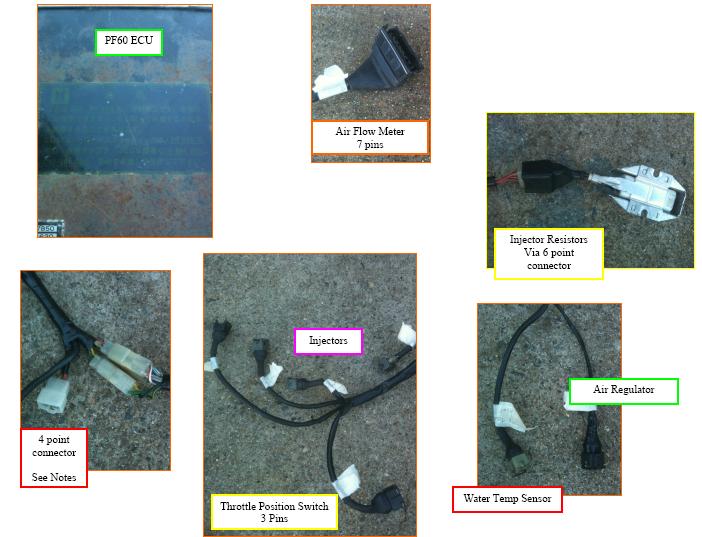

Attachment:
Component photo.JPG [ 53.54 KiB | Viewed 10094 times ]

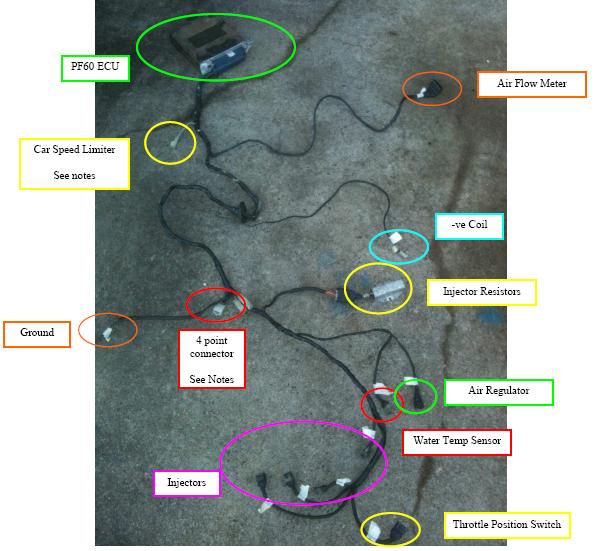

Attachment:
Individual parts.JPG [ 58.93 KiB | Viewed 10094 times ]

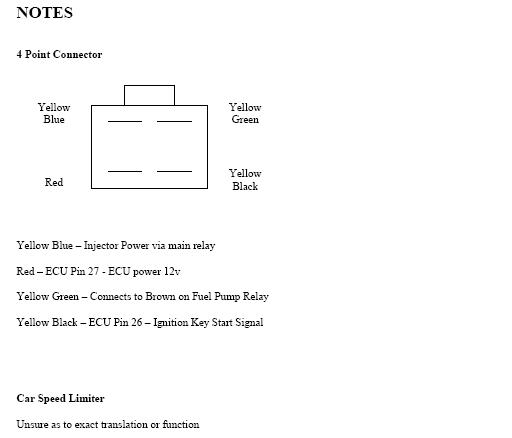

Attachment:
Notes.JPG [ 17.17 KiB | Viewed 10093 times ]
Cheers, Matt.
_________________
Life is far too short not to fill it with what you love. - Jackie French.[/size]
Last edited by Farmer on Thu May 27, 2010 12:34 pm, edited 1 time in total.
|
| Wed May 26, 2010 12:33 pm |
|
|
|
Gigantor928
Joined: Mon Apr 12, 2010 10:17 am
Posts: 15
Car(s): 77 TC Gemini Sedan, 06 Mazda MX-5
|
Thanks Matt, at least that'll give everyone an idea of what it is. I couldn't enlarge any of the pics from on here, so if anyone thinks it'll be useful, message me and I'll email it over full size. The detail is much clearer on the actual file.
Cheers and thanks.
Jason
|
| Thu May 27, 2010 11:16 am |
|
|
|
Farmer
Joined: Tue Oct 28, 2008 12:17 pm
Posts: 2612
Location: Rye Park, N.S.W.
Car(s): Doris, AuntyMary, Shrek, Jimmy; GT, Wasp, Flo & Sed unrestos; 65 Elf; 82 Rodeo, 60 TX550, 72 Sport, & a Sigma.
|
Fixed! Sorry Jason, I've got my computer 'L' plates on.
Thanks to Vicky, my 'puter teacher. Yep, I'm 51 & back at school learning things my 11 y.o. son can do! But hey, now I know, just 14 easy steps!
Cheers, Matt.
_________________
Life is far too short not to fill it with what you love. - Jackie French.[/size]
|
| Thu May 27, 2010 12:45 pm |
|
|
|
|
