hi folks,
Wondering about the heater fan in a '67 1500 4 door bellett deluxe. Does it have a fan at all or is it the through draft that pushes any interior heat in with no heat when car is stationary ?
thanks, jeff Scotland
|
| Tue Jun 21, 2011 3:58 pm |
|
|
|
PR95
Joined: Tue Mar 24, 2009 11:52 am
Posts: 843
Location: Sunshine Coast QLD
Car(s): PR95 PR20 WASP SWB NH Pajero Superchrged NT Pajero BF SR6 Falcon
|
Hi Jeff,
They have a fan heater that has a large oval rubber gasket that connects to underside of the fresh air box, and are switched from a second lever in the control box under the dash, that is activated with a push pull action.
Hope this helps.
Regards Geoff
|
| Tue Jun 21, 2011 10:03 pm |
|
|
|
Barney
Joined: Wed Oct 08, 2008 12:16 am
Posts: 74
Location: New Zealand
Car(s): 1968 Isuzu Bellett
|
My 68 Deluxe has the same arrangement, wondering if it is original or not
|
| Tue Jun 21, 2011 10:03 pm |
|
|
|
pa_man
Joined: Sat Oct 10, 2009 7:52 am
Posts: 685
Car(s): 67 Bellett Auto Sedan, 65 Wasp, 73 Chev Luv, 1/2 A Chev Luv, VX Commodore
|
68 Deluxe should have a factory fan heater unit!
|
| Wed Jun 22, 2011 12:33 am |
|
|
|
Barney
Joined: Wed Oct 08, 2008 12:16 am
Posts: 74
Location: New Zealand
Car(s): 1968 Isuzu Bellett
|
I suspected as much, amongst my parts was a second heater control panel, this one had the push pull fan control, I have put it in the car but have yet to find and install a fan
|
| Wed Jun 22, 2011 3:31 am |
|
|
|
Pombellett
Joined: Thu Nov 04, 2010 9:30 am
Posts: 487
Car(s): Alfa 33, 1935 Riley Special
|
Jeff, I've got most of Rolie's innards in my shed. I wonder if GT Orph can remember what sort of heater he had, because you're welcome to it if it's any good.
Mark
|
| Wed Jun 22, 2011 9:43 am |
|
|
|
gt orphanage
Joined: Fri Mar 20, 2009 8:23 am
Posts: 1816
|
I think Rolie's set up was a core only without the fan style
|
| Thu Jun 23, 2011 9:48 am |
|
|
|
pa_man
Joined: Sat Oct 10, 2009 7:52 am
Posts: 685
Car(s): 67 Bellett Auto Sedan, 65 Wasp, 73 Chev Luv, 1/2 A Chev Luv, VX Commodore
|

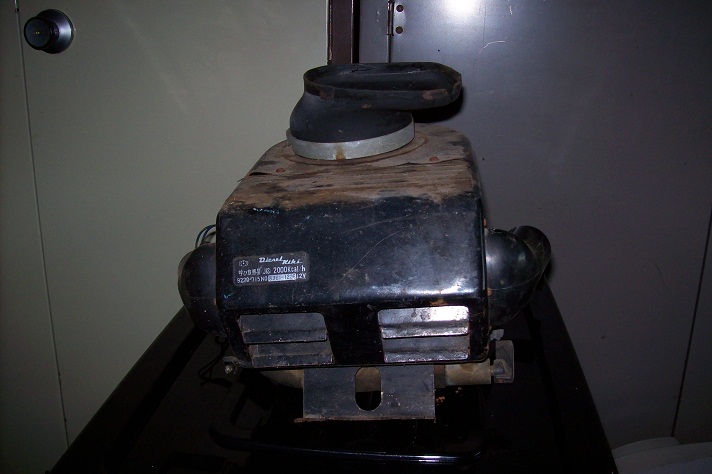

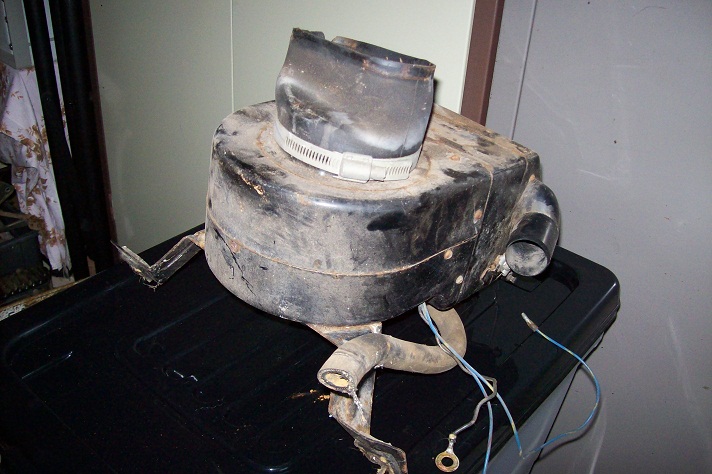

Here are a couple of pics of the heater unit that sould be in a "68"
Attachments:
Heater 2.jpg [ 180.95 KiB | Viewed 13007 times ]
Heater.jpg [ 126.38 KiB | Viewed 13007 times ]
|
| Sat Jun 25, 2011 2:07 am |
|
|
|
BULLITT
Joined: Mon Jan 10, 2011 1:03 pm
Posts: 2419
Car(s): 1966 TEARDROP ...MANUAL ...
|
all boxed and ready to go to bonnie .. scotland ...joking regards davo
|
| Sat Jun 25, 2011 5:35 am |
|
|
|
Farmer
Joined: Tue Oct 28, 2008 12:17 pm
Posts: 2612
Location: Rye Park, N.S.W.
Car(s): Doris, AuntyMary, Shrek, Jimmy; GT, Wasp, Flo & Sed unrestos; 65 Elf; 82 Rodeo, 60 TX550, 72 Sport, & a Sigma.
|
Yep, that's how the fan boosted unit should look. For Aus delivered cars though, these are pretty uncommon. Story is that imported cars were required to have a percentage of Australian content. 'Standard' cars had no heater, but many were fitted with a non-boosted unit as a dealer fit (along with radios, carpets & DeLuxe badges) to bring this content up. They called this "DeLuxe equipment". This changed in 1968 as the boffins changed the rules to allow full imports. Then you could buy a 'Standard' or a proper DeLuxe with the stainless window frames, etc.
For '67 & earlier, to get a boosted heater you had to find a fully imported DeLuxe. Some were brought in , and 'Doris' is one of them. She is my '66 teardrop auto DeLuxe.
Cheers, Matt.
