BULLITT
Joined: Mon Jan 10, 2011 1:03 pm
Posts: 2419
Car(s): 1966 TEARDROP ...MANUAL ...
|
spoke to mike he is a great bloke he has for years been doing the steerings etc on left hand drive conversions ..from American cars so he has a wealth of experience he knows this part of cars backwards ...I will have my pair for 90 next week ....
|
| Thu Nov 19, 2015 9:47 pm |
|
|
|
Glenn
Joined: Tue May 10, 2011 2:23 am
Posts: 2824
Location: Melb.
Car(s): '72 Sport Bellett (imported 180912), M/B AMG A35, i30, had Belletts in past, 2 sed, 3 GT's.
|
Asroc66 wrote: Mike is a top bloke
He does ask that someone fit and test drive to be 100% sure no hang-ups
We are pretty damn sure all will be good though for early models as I supplied 66-67 rod ends as in picture as well as steering arms off the spindles
Bulk order would be welcomed though
That's up to you guys from here
J I assume they will be left and rh versions? I 'think' one side has left hand thread ? On appearance it appears my Sport is the same. anybody confirm ? (pictured) Is he happy to tell us what they are off ??? Rough costing? I am guessing that bump steer 'might' be affected with the different offset..... although Belletts have it already, could be better or worse. glenn
Attachments:
72 Sport Bellett TIE ROD end.JPG [ 228.77 KiB | Viewed 35783 times ]
_________________
'72 PR60 Sport
|
| Fri Nov 20, 2015 1:51 am |
|
|
|
Asroc66
Joined: Tue Jun 18, 2013 5:09 am
Posts: 428
Location: Sydney NSW
Car(s): PR91 1967 GT, PR20 1966 1/2 with GT Goodies
|
The threads of the tie rods are the same from left to right and hence one fits both sides
The leg work is my gift to the Bellett fraternity
The knowledge of the tie rod is Mike's to divulge but remember, this is his bread and butter so to ask
Could be construed as rude
J
_________________
To increase the fun, add a hair dryer
Last edited by Asroc66 on Fri Nov 20, 2015 7:56 am, edited 1 time in total.
|
| Fri Nov 20, 2015 6:43 am |
|
|
|
Glenn
Joined: Tue May 10, 2011 2:23 am
Posts: 2824
Location: Melb.
Car(s): '72 Sport Bellett (imported 180912), M/B AMG A35, i30, had Belletts in past, 2 sed, 3 GT's.
|
Asroc66 wrote: The threads of the tie rods is same from left to right
The leg work is my gift to the Bellett fraternity
The knowledge of the tie rod is Mike's to divulge but remember, this is his bread and butter so to ask
Could be construed as rude
J OK fair enough. Can he advise where they are made? Some parts like this these days are poor quality in aftermarket. Looks like the rack ends are LH threads. any hints on cost Maybe he has some leads on ball joints also.......
_________________
'72 PR60 Sport
|
| Fri Nov 20, 2015 7:56 am |
|
|
|
Asroc66
Joined: Tue Jun 18, 2013 5:09 am
Posts: 428
Location: Sydney NSW
Car(s): PR91 1967 GT, PR20 1966 1/2 with GT Goodies
|
Let your fingers do the walking.......
_________________
To increase the fun, add a hair dryer
|
| Fri Nov 20, 2015 7:58 am |
|
|
|
KJB
Joined: Fri Nov 07, 2008 9:05 am
Posts: 620
Location: Western Victoria
Car(s): Bellett GT, Bellett Sedan, Prince Skyline GT, Porsche tractor, Lanz Bulldog, 996 Carrera 4,Prince Miler,
|
If the pivot points are un- changed as far as position (eg - height in relation to each other ) is concerned , then the shape of the arms should not affect "bump steer " , (that's my understanding of the geometry )
KB
_________________
Around here the Laws of Physics and Reality are strictly enforced !
|
| Fri Nov 20, 2015 8:00 am |
|
|
|
Glenn
Joined: Tue May 10, 2011 2:23 am
Posts: 2824
Location: Melb.
Car(s): '72 Sport Bellett (imported 180912), M/B AMG A35, i30, had Belletts in past, 2 sed, 3 GT's.
|
I couldn't get my head around the pic so flipped around the new part.... this makes it appear it has LH thread though.....it does not.
Hi Kerry, yes i think you might be correct. Although i wonder why they (Isuzu) put the bend in it ?
Are the Bellett ones two different years in the picture? early/late ?
Attachments:
image_flip.JPG [ 137.62 KiB | Viewed 35759 times ]
_________________
'72 PR60 Sport
|
| Fri Nov 20, 2015 8:11 am |
|
|
|
PR91
Joined: Tue Sep 16, 2008 11:54 am
Posts: 2544
|
The shape is irrelevant. They can be anything as long as the locations they mount to stay the same.
Moving any pivot point on any car will effect the geometry, hence bump steer.
Belletts do bump steer standard, but when u understand steering geometry and study it, it's easily fixed.
|
| Sat Nov 21, 2015 5:09 am |
|
|
|
BULLITT
Joined: Mon Jan 10, 2011 1:03 pm
Posts: 2419
Car(s): 1966 TEARDROP ...MANUAL ...
|
so is that thumbs up from you brett ???
|
| Sat Nov 21, 2015 5:18 am |
|
|
|
Glenn
Joined: Tue May 10, 2011 2:23 am
Posts: 2824
Location: Melb.
Car(s): '72 Sport Bellett (imported 180912), M/B AMG A35, i30, had Belletts in past, 2 sed, 3 GT's.
|
PR91 wrote: The shape is irrelevant. They can be anything as long as the locations they mount to stay the same.
Moving any pivot point on any car will effect the geometry, hence bump steer.
Belletts do bump steer standard, but when u understand steering geometry and study it, it's easily fixed. So what is the reason for the variance in the shape between years? Did Isuzu fiddle with the steering arm 'height' also, in an effort to reduce bump steer? It appears to me to be a little difficult to reduce bump steer as not much can be easily changed. Only the rack mounting height (which i think you are alluding to, Brett) or reducing suspension movement.
_________________
'72 PR60 Sport
|
| Sat Nov 21, 2015 9:48 am |
|
|
|
CQGT
Joined: Sun Dec 12, 2010 10:04 am
Posts: 386
Location: Boyne Island.Gladstone. Queenland
Car(s): '70 PR91,'69 PR20 x 2,'66 PR20,'65? KR20's x 2,'66 ? PR90,2012 d22 STR Navarra.
|
CQGT wrote: The part number 44350-370 is the genuine number for sedans and GT's up to '66.5.
After that date it is 44350-418. According to Isuzu there is NO interchange.
They changed the steering arm at the same time. If I had a used arm and end off of a
vehicle I would use both to be safe. But. Before I do. I would check the history of the donor
and also check dimensions.
Isuzu did quite a lot of changes in the front end around certain chassis numbers and dates. '66/'67.
I haven't got any parts for the steering and suspension for vehicles prior to "66.5 so I'm not able to
compare. Maybe somebody with access to these parts might be able to check.
Dave As above. If somebody had PRE and POST '66.5 ends and arms to compare we will get the answer. Dave.
_________________
CQGT.
I'm the Dave with the convertible.
|
| Sat Nov 21, 2015 12:19 pm |
|
|
|
CQGT
Joined: Sun Dec 12, 2010 10:04 am
Posts: 386
Location: Boyne Island.Gladstone. Queenland
Car(s): '70 PR91,'69 PR20 x 2,'66 PR20,'65? KR20's x 2,'66 ? PR90,2012 d22 STR Navarra.
|
I just looked at the parts books and the rack shaft changed in '67. The ball joint (rackend in todays terminology) did not change and is left hand thread. There could be a combination of all three. Rack shaft, tie rod and steering arm to eliminate a technical problem without upsetting the steering geometry.  Dave.
_________________
CQGT.
I'm the Dave with the convertible.
|
| Sat Nov 21, 2015 12:35 pm |
|
|
|
Asroc66
Joined: Tue Jun 18, 2013 5:09 am
Posts: 428
Location: Sydney NSW
Car(s): PR91 1967 GT, PR20 1966 1/2 with GT Goodies
|
90% of the knackered tie rods I have are the ones with minimal offset
+ my cars are lowered so I wanted minimal offset centre of thread to centre of ball due to travel requirements of the steering ends
They sit in defined orientated slots
J
_________________
To increase the fun, add a hair dryer
|
| Sat Nov 21, 2015 10:22 pm |
|
|
|
Glenn
Joined: Tue May 10, 2011 2:23 am
Posts: 2824
Location: Melb.
Car(s): '72 Sport Bellett (imported 180912), M/B AMG A35, i30, had Belletts in past, 2 sed, 3 GT's.
|
Theres is great info here on the causes of bump steer and various methods to fix them, depending on the nature of it. http://www.longacreracing.com/technical-articles.aspx?item=8162Since i don't think we really understand why My Isuzu changed things in the suspension, nor do we have accurate drawings of the suspension and pivot points of the A arms and steering relative to each other. One could only assume later changes were for the better? I guess in the end though, any tie rod end is better than a knackered one.
_________________
'72 PR60 Sport
|
| Sun Nov 22, 2015 6:20 am |
|
|
|
67GT
Joined: Sun Jun 14, 2009 8:44 am
Posts: 348
Location: central coast
Car(s): 1967 bellett gt, wasp trayback , 2018 d-max 4x4 dual cab LSU, 2016 Focus, 1996 GQ Patrol
|
Has anyone fitted these yet?
I have ordered a pair and would like a spare pair, but don't want to outlay that sort of coin only to find out they don't fit.
|
| Tue Nov 24, 2015 7:44 pm |
|
|
|
Asroc66
Joined: Tue Jun 18, 2013 5:09 am
Posts: 428
Location: Sydney NSW
Car(s): PR91 1967 GT, PR20 1966 1/2 with GT Goodies
|
Hi All
No responsibility taken as have not fitted to my cars but have been busy beavering behind the scene and finally found these, they seem to be a good tie rod for lowered vehicles,
Has been a real challenge to find with a right hand thread
Cheers
J
_________________
To increase the fun, add a hair dryer
|
| Mon Nov 23, 2020 1:44 am |
|
|
|
Glenn
Joined: Tue May 10, 2011 2:23 am
Posts: 2824
Location: Melb.
Car(s): '72 Sport Bellett (imported 180912), M/B AMG A35, i30, had Belletts in past, 2 sed, 3 GT's.
|
Great detective work.
That's very interesting and they hopefully fit, but would early Cadillac or any for that matter, have Metric threads ? (one assumes Bellett is totally Metric)
_________________
'72 PR60 Sport
|
| Tue Nov 24, 2020 3:11 am |
|
|
|
CQGT
Joined: Sun Dec 12, 2010 10:04 am
Posts: 386
Location: Boyne Island.Gladstone. Queenland
Car(s): '70 PR91,'69 PR20 x 2,'66 PR20,'65? KR20's x 2,'66 ? PR90,2012 d22 STR Navarra.
|
The Cadillac Catera is based on the Opel Omega built between 1996 to 2001. This vehicle has the "V" series
platform the same as the Commodore in Australia.
Which leads us to the assumption that if the Commodore (not entirely metric) tie rod ends may fit the Bellett
and be readily available in Australia.
Dave.
_________________
CQGT.
I'm the Dave with the convertible.
|
| Tue Nov 24, 2020 11:34 am |
|
|
|
PR91
Joined: Tue Sep 16, 2008 11:54 am
Posts: 2544
|
Be VERY CAREFUL.
Those looks like the ball is located slightly higher than the original in relation to the threaded section. Any change in things like that can give problems with handling, especially bump steer.
Might not look like much but believe me.... 3mm can make a huge difference.
|
| Tue Nov 24, 2020 11:40 pm |
|
|
|
Asroc66
Joined: Tue Jun 18, 2013 5:09 am
Posts: 428
Location: Sydney NSW
Car(s): PR91 1967 GT, PR20 1966 1/2 with GT Goodies
|

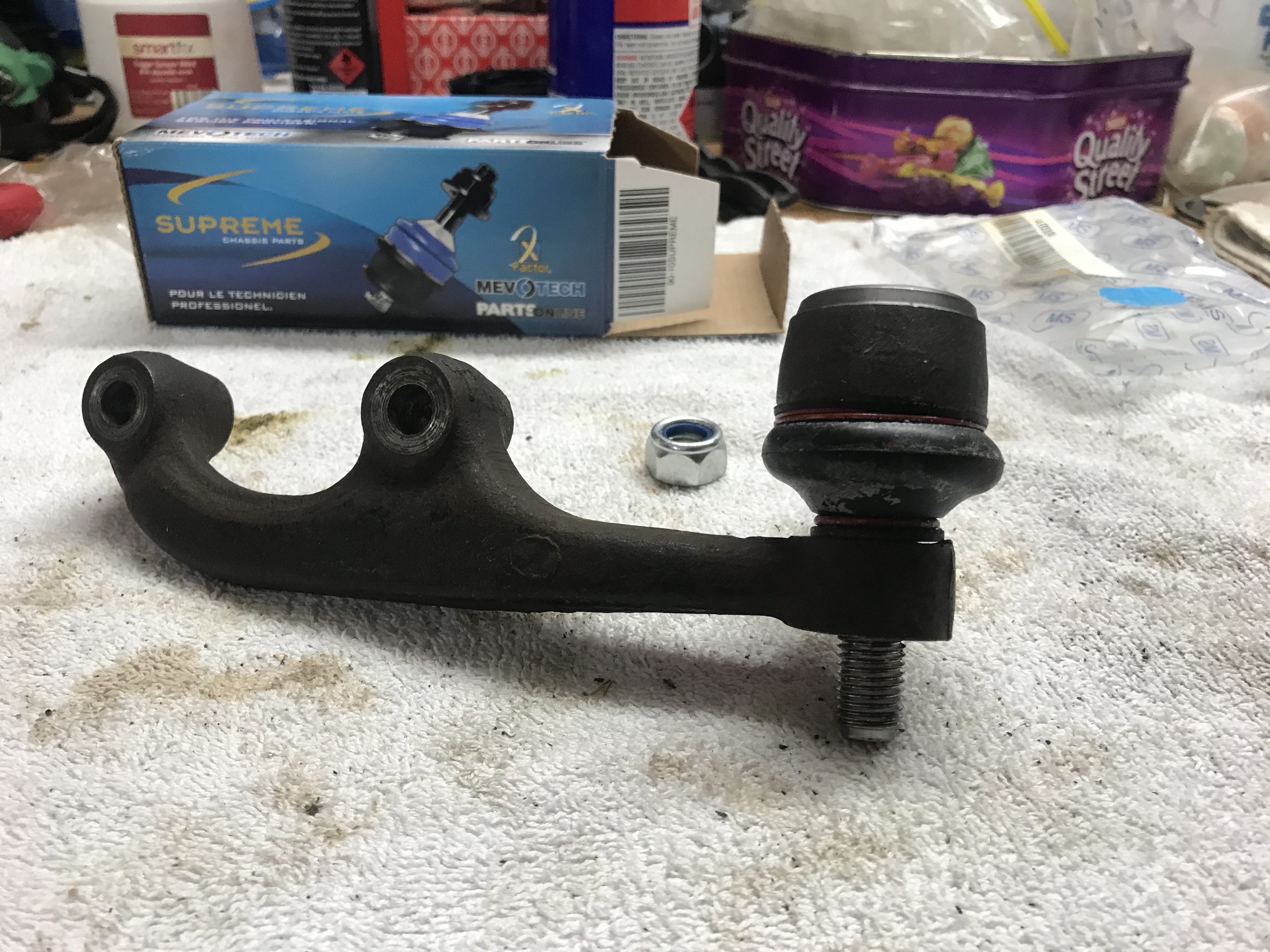

As I said I take no responsibility - investigate with your own merits
Arrr the black art that is Bump steer
For those with keen eye sight amongst us......
The tape is 6mm
Cheers
J
