..I Paid Close Attention To The Depth I Was Cutting As I Was Unsure If The Outer/Inner Skin Was Good Or Not..
Attachments:
-Bellett-Rust-Repair--2.JPG [ 2.29 MiB | Viewed 33887 times ]
_________________
Ted Freeman
|
| Sun Feb 14, 2016 8:51 am |
|
|
|
Teditor
Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
|
...Once Cut & Pried Apart I Was Able To See Why The Bulge Was There, Plenty Of Rust Within As I Expected...
Attachments:
-Bellett-Rust-Repair--3.JPG [ 2.35 MiB | Viewed 33887 times ]
_________________
Ted Freeman
|
| Sun Feb 14, 2016 8:56 am |
|
|
|
Teditor
Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
|
....Quite The Mess....
Attachments:
-Bellett-Rust-Repair--4.JPG [ 2.65 MiB | Viewed 33887 times ]
_________________
Ted Freeman
|
| Sun Feb 14, 2016 8:58 am |
|
|
|
Teditor
Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
|
.....After I Cleaned Out All The Rust Shards I Was Then Able To See Just How Bad The Surface Rust Was On The Inner Faces & Made The Choice To Continue Cutting My Way Through To Continue On With My Original Plan Of Replacing Both Sections.....
Attachments:
-Bellett-Rust-Repair--5.JPG [ 2.25 MiB | Viewed 33887 times ]
_________________
Ted Freeman
|
| Sun Feb 14, 2016 9:03 am |
|
|
|
Teditor
Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
|
......Rough-Cut......
Attachments:
-Bellett-Rust-Repair--6.JPG [ 2.2 MiB | Viewed 33887 times ]
_________________
Ted Freeman
|
| Sun Feb 14, 2016 9:06 am |
|
|
|
Teditor
Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
|
.......File & De-Burr All The Surfaces.......
Attachments:
-Bellett-Rust-Repair--7.JPG [ 2.15 MiB | Viewed 33885 times ]
_________________
Ted Freeman
|
| Sun Feb 14, 2016 9:09 am |
|
|
|
Teditor
Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
|
........I Would Of Loved To Do A Skin Off Restoration Given All The Potential Rust Between All But Maybe Later On In Life, At Least She Would Be A Good Base To Do So After This Restoration........
Attachments:
-Bellett-Rust-Repair--8.JPG [ 2.48 MiB | Viewed 33886 times ]
_________________
Ted Freeman
|
| Sun Feb 14, 2016 9:14 am |
|
|
|
Teditor
Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
|
.........A Closer Look At The Exposed Sides.........
Attachments:
-Bellett-Rust-Repair--9.JPG [ 3.24 MiB | Viewed 33886 times ]
_________________
Ted Freeman
|
| Sun Feb 14, 2016 9:18 am |
|
|
|
Teditor
Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
|
..........& Now A Closer Look At The Unexposed Sides.(Scary)..........
Attachments:
-Bellett-Rust-Repair--10.JPG [ 3.25 MiB | Viewed 33886 times ]
_________________
Ted Freeman
|
| Sun Feb 14, 2016 9:21 am |
|
|
|
Teditor
Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
|
.Back At It Again.
Attachments:
-Bellett-1.JPG [ 2.11 MiB | Viewed 33849 times ]
_________________
Ted Freeman
|
| Wed Feb 17, 2016 3:55 am |
|
|
|
Teditor
Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
|
..Dad Suggested To Grind The Inner Sheet In A-Bit So To Create A Step All Way Round Which Will Help Absorb The Heat When Welding & It Works To, It Greatly Lessened The Chance Of A Blow-Through When Welding (Thanks Dad)..
Attachments:
-Bellett-2.JPG [ 2.11 MiB | Viewed 33850 times ]
_________________
Ted Freeman
|
| Wed Feb 17, 2016 4:05 am |
|
|
|
Teditor
Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
|
...A Few Dummy Fits & Fine Tuning Before Welding, It's Easy To Get Ahead Of Oneself Sorry...
Attachments:
-Bellett-3.JPG [ 2.25 MiB | Viewed 33850 times ]
_________________
Ted Freeman
|
| Wed Feb 17, 2016 4:10 am |
|
|
|
Teditor
Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
|
....I Hit It With A Few Spot-Welds So It Won't Distort When Welding It In....
Attachments:
-Bellett-4.JPG [ 2.27 MiB | Viewed 33850 times ]
_________________
Ted Freeman
|
| Wed Feb 17, 2016 4:14 am |
|
|
|
Teditor
Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
|
.....& Away I Went!
Attachments:
-Bellett-5.JPG [ 2.52 MiB | Viewed 33850 times ]
_________________
Ted Freeman
|
| Wed Feb 17, 2016 4:17 am |
|
|
|
Teditor
Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
|
......Not The Best Job I Know, It's Quite Hard To Weld & Work With Half Rusted Sheet Metal (That Being All The Bellett's Metal) But Dad's Step Idea Helped Dissipate A-Lot Of The Heat & Most Of The Welds Were Fused Correct From What I Can See But I Can Also See A-Lot Of Bad Welds (More So After The Clean Up) & A Need To Go Back Over It Again Haunts My Mind......
Attachments:
-Bellett-6.JPG [ 2.8 MiB | Viewed 33848 times ]
_________________
Ted Freeman
|
| Wed Feb 17, 2016 4:30 am |
|
|
|
Teditor
Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
|
.......After The Welds Are Sanded Back Is When I Get To Check & See If Its All Fused In Or Not, (?).......
Attachments:
-Bellett-7.JPG [ 2.44 MiB | Viewed 33847 times ]
_________________
Ted Freeman
|
| Wed Feb 17, 2016 4:37 am |
|
|
|
Teditor
Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
|
........From The Other Side........
Attachments:
-Bellett-8.JPG [ 2.8 MiB | Viewed 33847 times ]
_________________
Ted Freeman
|
| Wed Feb 17, 2016 4:39 am |
|
|
|
Teditor
Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
|
.........Sizing Up The Next Bit.
I forgot To Say That On The Inside I Should Have Stripped The Paint Back Further As It Got Burnt.........
..In-Put--Techniques--Methods..Knowledge.. All Welcome ..
Attachments:
-Bellett-9.JPG [ 2.76 MiB | Viewed 33846 times ]
_________________
Ted Freeman
|
| Wed Feb 17, 2016 4:52 am |
|
|
|
Teditor
Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
|

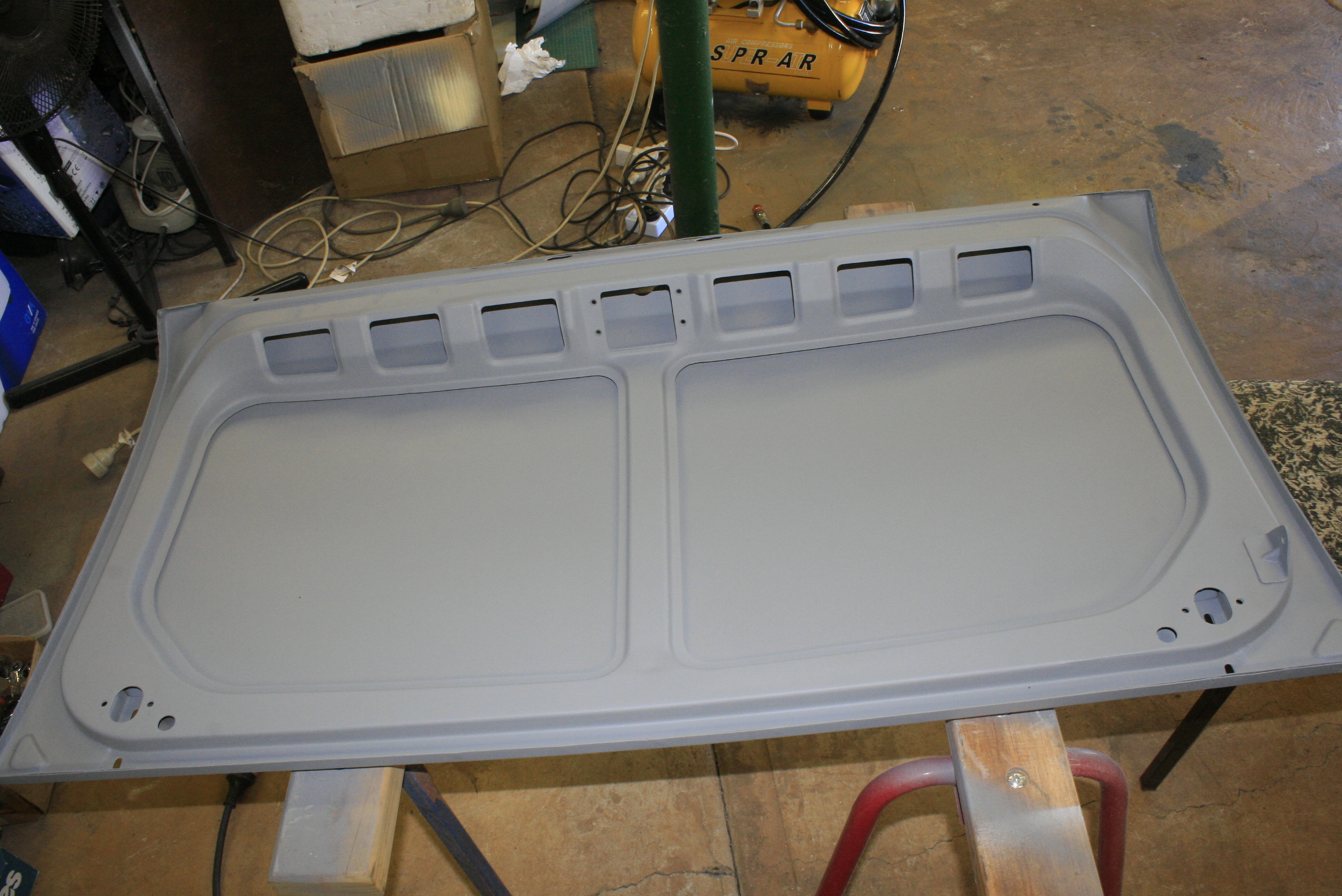

.The Boots Inner After A Coat Of Etch Primer.
Attachments:
-Bellett-Boot-1.JPG [ 3.72 MiB | Viewed 33800 times ]
_________________
Ted Freeman
|
| Thu Feb 25, 2016 4:33 am |
|
|
|
Teditor
Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
|
..
Attachments:
-Bellett-Boot-2.JPG [ 2.35 MiB | Viewed 33800 times ]
