Screamin' Squirrel II
Author Message
User avatar

Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
Reply with quote
...A Bit Better Looking Now That All The Holes & Rust Are Gone...


Attachments:
-Bellett-Boot-3.JPG [ 2.08 MiB | Viewed 34817 times ]

_________________
Ted Freeman
Thu Feb 25, 2016 4:38 am
Profile
User avatar

Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
Reply with quote
....Few Defaults Remain But The Ones That Do Eat At Me....


Attachments:
-Bellett-Boot-4.JPG [ 2.07 MiB | Viewed 34817 times ]

_________________
Ted Freeman
Thu Feb 25, 2016 4:41 am
Profile
User avatar

Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
Reply with quote
.....


Attachments:
-Bellett-Boot-5.JPG [ 2.04 MiB | Viewed 34817 times ]

_________________
Ted Freeman
Thu Feb 25, 2016 4:42 am
Profile
User avatar

Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
Reply with quote
......


Attachments:
-Bellett-Boot-6.JPG [ 2.13 MiB | Viewed 34817 times ]

_________________
Ted Freeman
Thu Feb 25, 2016 4:44 am
Profile
User avatar

Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
Reply with quote
.......


Attachments:
-Bellett-Boot-7.JPG [ 2.1 MiB | Viewed 34817 times ]

_________________
Ted Freeman
Thu Feb 25, 2016 4:46 am
Profile
User avatar

Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
Reply with quote
........The To Do List........


Attachments:
-Bellett-DoorZ-8.JPG [ 2.43 MiB | Viewed 34817 times ]

_________________
Ted Freeman
Thu Feb 25, 2016 4:47 am
Profile
User avatar

Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
Reply with quote
If anyone has anything they would like to discuss, but don't feel it is conducive to what we are doing here, or, on the other hand, any advice, assistance that will tie up the website, please don't hesitate to email me direct at teditor@bigpond.com

Sometimes it just helps to throw things around.

I am still interested in what happened to the original Screamin' Squirrel, surely someone must know.

Ted (Teditor) Freeman

_________________
Ted Freeman


Thu Feb 25, 2016 6:51 am
Profile
User avatar

Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
Reply with quote
.I Did The Etch Primer With The Small Gun & Despite Looking Good On Closer Inspection I Could Still See Sparkling Of The Bare Metal Through The Etch Primer So A Thicker Coat Was Needed & A Step Up In Gun Size Was Also Needed.


Attachments:
Spray-Gun'Z-1.JPG [ 2.86 MiB | Viewed 34804 times ]

_________________
Ted Freeman
Thu Feb 25, 2016 7:07 am
Profile
User avatar

Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
Reply with quote
..The Bigger Spray Gun Was An Absolute Delight As Up Until Now I Have Only Used The Touch-Up Gun, It Was Much Easier To Control & Set-Up..


Attachments:
-Bellett-Boot-1.JPG [ 3.53 MiB | Viewed 34803 times ]

_________________
Ted Freeman
Thu Feb 25, 2016 7:14 am
Profile
User avatar

Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
Reply with quote
...The Big Gun Was Easy To Dial In & The 50/50 Overlap Was A Lot More Achievable With It Compared To The Touch-Up Gun...


Attachments:
-Bellett-Boot-2.JPG [ 2.1 MiB | Viewed 34803 times ]

_________________
Ted Freeman
Thu Feb 25, 2016 7:18 am
Profile
User avatar

Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
Reply with quote
....So From Now On I Will Continue To Use The Small Gun For The First Coat As It Is Pretty Good With The Tight Spots & Then I Will Let That Dry & Use The Big Primer Gun For A Thicker Wetter Coat....


Attachments:
-Bellett-Boot-3.JPG [ 2.66 MiB | Viewed 34803 times ]

_________________
Ted Freeman
Thu Feb 25, 2016 7:26 am
Profile
User avatar

Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
Reply with quote
.....


Attachments:
-Bellett-Boot-4.JPG [ 2.15 MiB | Viewed 34803 times ]

_________________
Ted Freeman
Thu Feb 25, 2016 7:29 am
Profile
User avatar

Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
Reply with quote
......I Really Enjoyed Using The Large Spray Gun, The Results Are Far More Rewarding......


Attachments:
-Bellett-Boot-5.JPG [ 2.1 MiB | Viewed 34803 times ]

_________________
Ted Freeman
Thu Feb 25, 2016 7:34 am
Profile
User avatar

Joined: Tue May 10, 2011 2:23 am
Posts: 2823
Location: Melb.
Car(s): '72 Sport Bellett (imported 180912), M/B AMG A35, i30, had Belletts in past, 2 sed, 3 GT's.
Reply with quote
Teditor wrote:
.I Did The Etch Primer With The Small Gun & Despite Looking Good On Closer Inspection I Could Still See Sparkling Of The Bare Metal Through The Etch Primer So A Thicker Coat Was Needed & A Step Up In Gun Size Was Also Needed.


are you talking of spraying etch primer or primer? Etch primer goes over bare metal and is sprayed sparingly, to allow the primer to key to the metal.

glenn

_________________
'72 PR60 Sport


Thu Feb 25, 2016 9:51 pm
Profile WWW
User avatar

Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
Reply with quote
..The Few Coats To Strip Through..


Attachments:
--Bellett--1.JPG [ 2.28 MiB | Viewed 34753 times ]

_________________
Ted Freeman
Mon Feb 29, 2016 1:20 am
Profile
User avatar

Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
Reply with quote
...The Boot Loaded Up With Paint-Stripper...


Attachments:
--Bellett--2.JPG [ 3.81 MiB | Viewed 34753 times ]

_________________
Ted Freeman
Mon Feb 29, 2016 1:22 am
Profile
User avatar

Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
Reply with quote
....After The Paint-Stripper I Will Then Use A Carpet Sanding Disc So To Get Down To The Good Bare-Metal From There I Will Put A Coat Of Etch-Primer & Then Primer & Then Hopefully The Top Coat Of Color, When I Painted Up The Door I Did Etch-Primer 1st Then I Used A Putty-Primer Which I Will Not Be Using Again So The Boot Will Be Bare-Metal Then Etch-Primer & Then A Normal Primer Then Color & This Method Will Be Used All Over From Now On.
The Putty-Primer Is A Very Thick Viscous Material & Required A Lot Of Thinning Down, Plainly Put It's Hard To Work With.
When I Sprayed The Etch-Primer On The Inner Boot The I Did Not Get The Best Coverage So I Did Go Back Over Again With A Nice Wet Coat (I Did Not Use It Sparingly As Recommended In Last Reply Post), Will This Thicker Wetter Coat Of Etch-Primer Cause Any Issues As I Was Hoping To Apply The Primer & Color In The Same Ways....


Attachments:
-Bellett--3.JPG [ 2.7 MiB | Viewed 34753 times ]

_________________
Ted Freeman
Mon Feb 29, 2016 1:45 am
Profile

Joined: Fri Mar 20, 2009 8:23 am
Posts: 1816
Reply with quote
I am no spray painter, But you will need to spray putty it, guide coat it and 400/ guide coat it again and 800 it before top coat. If you don't you will get sand paper scratch marks showing through your finished job :?:


Mon Feb 29, 2016 3:31 am
Profile
User avatar

Joined: Tue May 10, 2011 2:23 am
Posts: 2823
Location: Melb.
Car(s): '72 Sport Bellett (imported 180912), M/B AMG A35, i30, had Belletts in past, 2 sed, 3 GT's.
Reply with quote
Teditor wrote:
....After The Paint-Stripper I Will Then Use A Carpet Sanding Disc So To Get Down To The Good Bare-Metal From There I Will Put A Coat Of Etch-Primer & Then Primer & Then Hopefully The Top Coat Of Color, When I Painted Up The Door I Did Etch-Primer 1st Then I Used A Putty-Primer Which I Will Not Be Using Again So The Boot Will Be Bare-Metal Then Etch-Primer & Then A Normal Primer Then Color & This Method Will Be Used All Over From Now On.
The Putty-Primer Is A Very Thick Viscous Material & Required A Lot Of Thinning Down, Plainly Put It's Hard To Work With.
When I Sprayed The Etch-Primer On The Inner Boot The I Did Not Get The Best Coverage So I Did Go Back Over Again With A Nice Wet Coat (I Did Not Use It Sparingly As Recommended In Last Reply Post), Will This Thicker Wetter Coat Of Etch-Primer Cause Any Issues As I Was Hoping To Apply The Primer & Color In The Same Ways....


etch primer is not supposed to cover the metal totally, its just a dust coat that then allows the primer to 'stick' so only a very light mist coat is required. You should be able to see through it. It's usually a yellow colour and is thinnned about 50% with thinners if i recall.

What sort of primer are you using? 2 Pak or Acrylic?

_________________
'72 PR60 Sport


Mon Feb 29, 2016 5:50 am
Profile WWW
User avatar

Joined: Tue Jul 05, 2011 1:01 pm
Posts: 368
Reply with quote

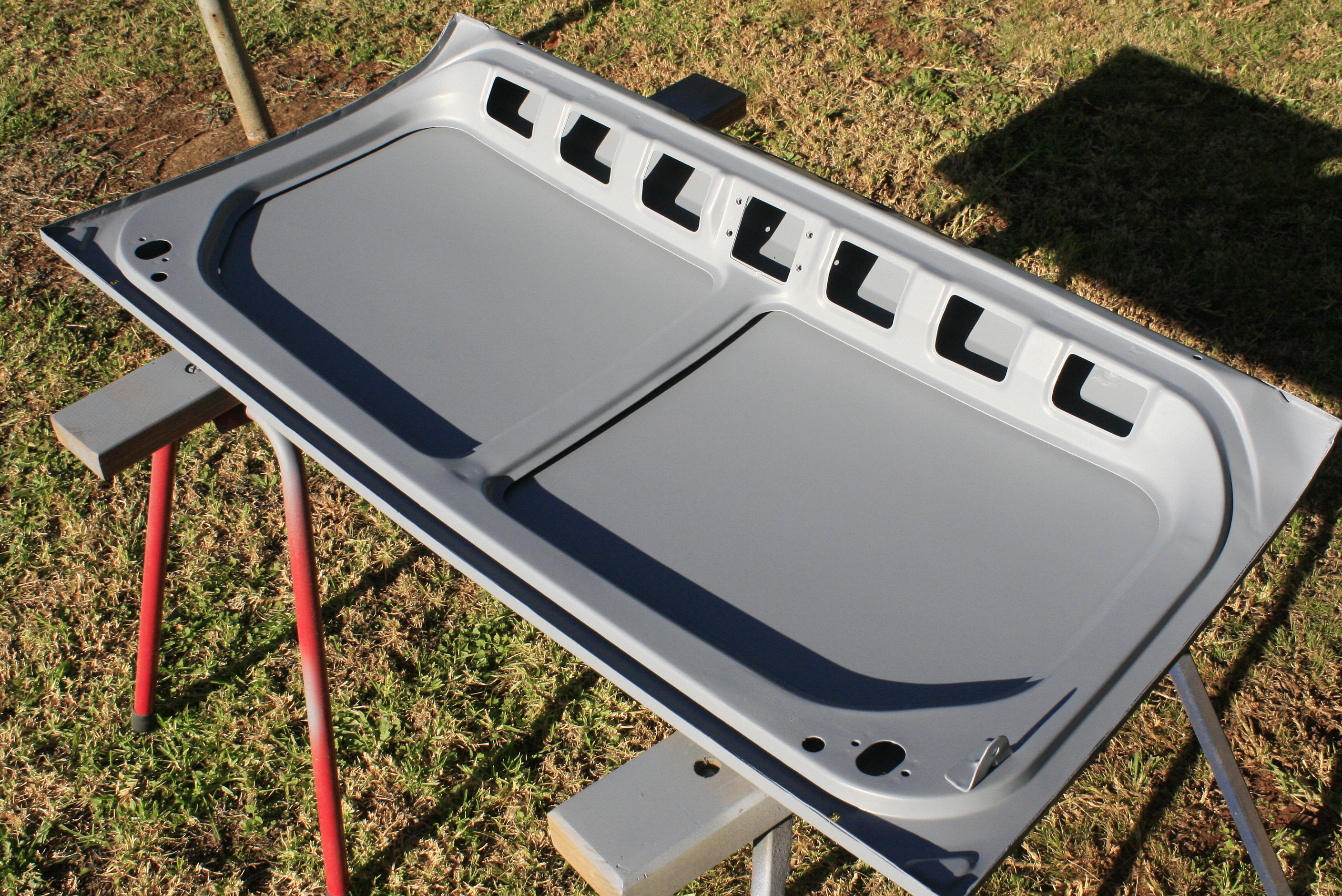

.Ready For Etch Primer.


Attachments:
-Bellett---Boot- 1.JPG
-Bellett---Boot- 1.JPG [ 2.69 MiB | Viewed 34690 times ]

_________________
Ted Freeman
Tue Mar 01, 2016 2:04 am
Profile
